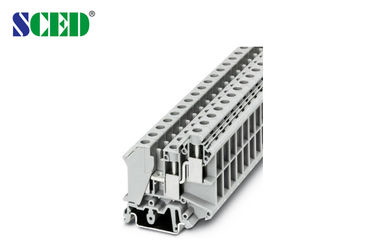

AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm

AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm

Products - Din Rail Terminal Blocks
  • Highlight

    din rail mount terminal blocks

    ,

    din rail terminals blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-10N-02
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm

  • AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm
  • AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm
Get Price Contact Now

AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm



Detailed product Description:



Terminal width: 10.2mm, 300V 65A, AWG:24-6, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Deck; ■Double decks; □Triple decks



AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 0





Parameter and Drawing Specifications:

Description Color Type
Terminal Grey TR-10N-02

AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 1End Cover Grey





AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 2Fixed Bridge



 FBI 10-10 Imax: 76A

AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 3Insertion Bridge





AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 4Separating Plate



 TS-KK3

AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 5Partition Plate




Zack Strip White ZB10
Screwdriver SZS 1.0×4.0
Rail Material aluminum
Dimensions mm 10.2/56.5/-
Height (U35: 7.5/U35: 15G 32) mm 59/66.5/64
Screw / Torque Nm M4 / 1.5-1.8
Stripping Length mm 11
IEC Technical Data
Max. Load Current / Cross Section A / mm2 76 / 16
Rated Surge Voltage / Contamination Class KV / - 8 / 3
Surge Voltage Category Ⅲ





AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 6



Standard color:

Grey. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand





Applications:

Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..

.



Tag:

Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



AWG 24 - 6 300V 65A Din Rail Terminal Blocks Terminal width 10.2mm 7
