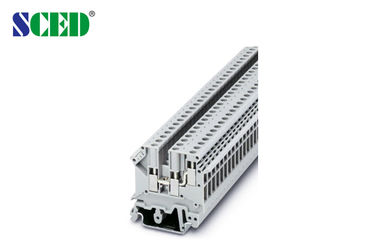

Terminal width 6.2mm AWG 30 - 10 Din Rail Terminal Blocks 150V 30A
-
Highlight
rail mounted terminal blocks
,din rail terminals blocks
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR-5N-02
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly
Terminal width 6.2mm AWG 30 - 10 Din Rail Terminal Blocks 150V 30A
Terminal width 6.2mm AWG 30 - 10 Din Rail Terminal Blocks 150V 30A
Detailed product Description:
Terminal width: 6.2mm, 600V 30A, AWG:30-10, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Parameter and Drawing Specifications:
| Description Color | Type |
| Terminal Grey | TR-5N-02 |
|
|
D-TR-5T |
|
|
FBI 10-6 Imax: 32A |
|
|
EB 10-6 Imax: 32A |
|
|
TS-K |
|
|
|
| Zack Strip White | ZB6 |
| Screwdriver | SZS0.6×3.5 |
| Rail Material | aluminum |
| Dimensions mm | 6.2/50.5/2 |
| Height (U35: 7.5/U35: 15G 32) mm | 47/54.5/52 |
| Screw / Torque Nm | M3 / 0.6-0.8 |
| Stripping Length mm | 8 |
| IEC Technical Data | |
| Max. Load Current / Cross Section A / mm2 | 32 / 4 |
| Rated Surge Voltage / Contamination Class KV / - | 6 / 3 |
| Surge Voltage Category | Ⅲ |
Standard color:
Grey. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
.
Tag:
Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
