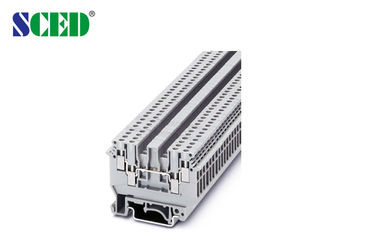

Terminal width 5.2mm 300V 20A Din Rail Terminal Blocks AWG 30 - 12
Detailed product Description:
Terminal width: 5.2mm, 300V 20A, AWG: 30-12, Din Rail Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Deck; ■Double decks; □Triple decks
Parameter and Drawing Specifications:
| Description Color | Type |
| Terminal Grey | TR-3N-03 |
|
|
D-TR-4 |
|
|
FBRI 10-5N Imax: 26A |
|
|
EBL 10-5 Imax: 26A |
|
|
TS-KK3 |
|
|
|
| Zack Strip White | ZB5 |
| Screwdriver | SZS0.6×3.5 |
| Rail Material | aluminum |
| Dimensions mm | 5.2/63.5/1.5 |
| Height (U35: 7.5/U35: 15G 32) mm | 47/54.5/52.5 |
| Screw / Torque Nm | M3 / 0.6-0.8 |
| Stripping Length mm | 8 |
| IEC Technical Data | |
| Max. Load Current / Cross Section A / mm2 | 32/4 |
| Rated Surge Voltage / Contamination Class KV / - | 6 / 3 |
| Surge Voltage Category | Ⅲ |
Standard color:
Grey. Other colors also available, please refer to below How to Order and select the color you want.
Competitive Advantage:
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
.
Tag:
Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
