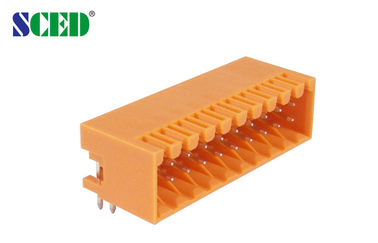

Pluggable Terminal Block Pitch 3.50mm Header Male Sockets 150V 8A 2*2P - 24*2P Plug-in Terminal Block

Pluggable Terminal Block Pitch 3.50mm Header Male Sockets 150V 8A 2*2P - 24*2P Plug-in Terminal Block

 Pluggable Terminal Block  Pitch 3.50mm  Header  Male Sockets  150V 8A  2*2P - 24*2P  Plug-in Terminal Block

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-25V

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description

Pluggable Terminal Block Pitch 3.50mm Header Male Sockets 150V 8A 2*2P - 24*2P Plug-in Terminal Block

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double Levels; □Triple Levels



This header match with plug series: TP381P-25



 Pluggable Terminal Block  Pitch 3.50mm  Header  Male Sockets  150V 8A  2*2P - 24*2P  Plug-in Terminal Block



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 150/8
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 63 / 8 125 / 8 250 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
Pin Dimension mm 0.8 x 0.8





 Pluggable Terminal Block  Pitch 3.50mm  Header  Male Sockets  150V 8A  2*2P - 24*2P  Plug-in Terminal Block



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
