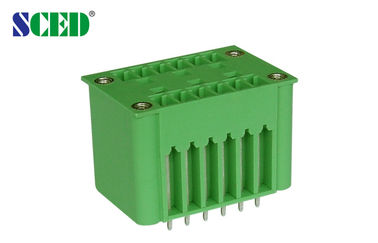

Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block

Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block

Products - Pluggable Terminal Block
  • Highlight

    electrical terminal blocks

    ,

    plug in terminal block

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381H-01F
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block

  • Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block
  • Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block
Get Price Contact Now

Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block



□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double Levels; □Triple Levels



Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/8
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.2
Pin Dimension mm 0.8 x 0.8



Male Sockets Header Pitch 3.81mm / 300V 8A / 2*2P-20*2P , Pluggable Terminal Block 1





Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



Competitive Advantage:



  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
