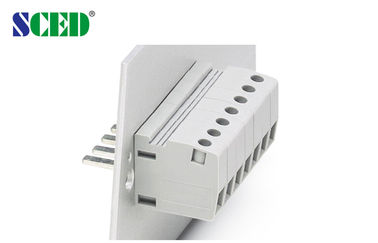

Through Panel Terminal Block Connector

Through Panel Terminal Block Connector
Through Panel Terminal Block Connector

Large Image :  Through Panel Terminal Block Connector

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-10N-07

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Grey
Number Of Contacts: 2P-24P Pitch: 10.1mm
Rated Current: 65A Rated Voltage: 600V
Type: Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors Wire Range: 6-24
High Light:

panel mount terminal blocks

,

feed through terminal blocks



Through Panel Terminal Block Connector


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
How to order:
Through Panel Terminal Block Connector 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 65



600 / 5

Wire Range                       AWG

6-24



6-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11

Screw / Torque                    / lbf.in

M4 / 10.6-13



Through Panel Terminal Block Connector 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
