| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-16N-01 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Grey |
|---|---|---|---|
| Number Of Contacts: | 2P-16P | Pitch: | 16.50mm |
| Rated Current: | 85A | Rated Voltage: | 600V |
| Type: | Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors | Wire Range: | 4-22 |
| High Light: | pcb screw terminal blocks,pcb mount terminal block |
||

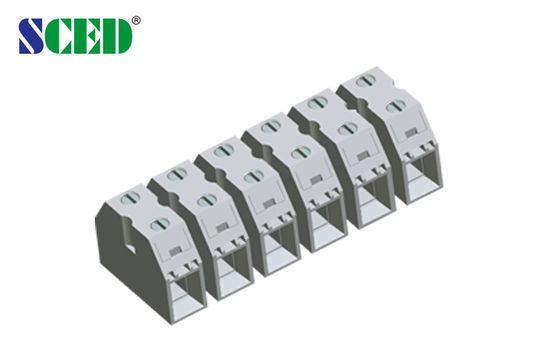

6 Pin Feed Through Wiring Terminal Block Heavy Duty Right Angle Wire Inlet
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 85 |
600 / 85 |
600 / 5 |
|
Wire Range AWG |
4-22 |
4-22 |
4-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 85 |
1000 / 85 |
1000 / 85 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
16 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
9-10 |
||
|
Screw / Torque / lbf.in |
M5 / 10.6-13 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
