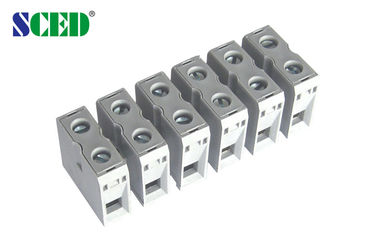

Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE

Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE

Products - Feed Through Terminal Block
  • Highlight

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Grey
  • Number Of Contacts
    2P-16P
  • Pitch
    14.50mm
  • Rated Current
    65A
  • Rated Voltage
    600V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Connectors,Electrical Terminal Blocks
  • Wire Range
    6-24
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-10N-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE

  • Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE
  • Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE
Get Price Contact Now



Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed-through terminal connectors,through wall terminal block,
Penal mount terminal Blocks

How to order:
Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 65

600 / 65

600 / 5

Wire Range                       AWG

6-24

6-24

6-24

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 65

1000 / 65

1000 / 65

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Clamp Cage / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M5 / 10.6-13



Panel Mount Feed Through Terminal Block Screw 2 Poles - 16 Poles UL CE 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
