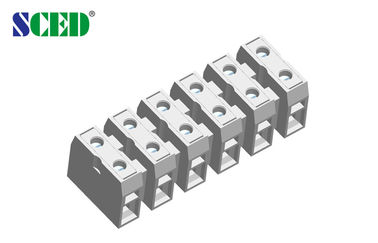

30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE

30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE

  • Highlight

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Grey
  • Number Of Contacts
    Any Poles Available
  • Pitch
    12.00mm
  • Rated Current
    30A
  • Rated Voltage
    600V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors
  • Wire Range
    10-30
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-5N-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE





30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks


How to order:
30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 30

600 / 30



Wire Range                       AWG

10-30

10-30



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 41

1000 / 41

1000 / 41

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66/ UL94, V-0

Conduction Board Plating

Copper/Nickel Plated

Clamp Cage Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M 3 / 4.4-5.3



30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
