| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-3N-01 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control | Color: | Grey |
|---|---|---|---|
| Number Of Contacts: | 2P-16P | Pitch: | 10.00mm |
| Rated Current: | 20A | Rated Voltage: | 600V |
| Type: | Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors | Wire Range: | 12-28 |
| High Light: | pcb screw terminal blocks,pcb mount terminal block |
||

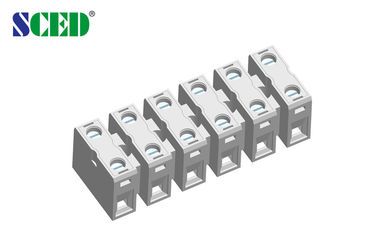

Right Angle Wire Feed Through Panel Mount Terminal Block PCB 600V 20A
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed-through terminal connectors,through wall terminal block,
Penal mount terminal Blocks
How to order:
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 20 |
600 / 20 |
|
|
Wire Range AWG |
12-28 |
12-28 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 32 |
1000 / 32 |
1000 / 32 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
4 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PL/ UL94, V-0 |
||
|
Conduction Board Plating |
Cooper/Nickel Plated |
||
|
Clamp Cage Plating |
Brass / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
5-6 |
||
|
Screw / Torque / lbf.in |
M 3 / 4.4-5.3 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Contact Person: Martin Liang
Tel: +8613902441660
Fax: +86-755-28769522
