1P-24P 30.0mm Single Deck Feed-Through Terminal Block Connector , 600V 285A

1P-24P 30.0mm Single Deck Feed-Through Terminal Block Connector , 600V 285A

  • Highlight

    plug in terminal block connector

    ,

    barrier terminal block connector

  • Type
    Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Pitch
    30.00mm
  • Number Of Contacts
    1P-24P
  • Wire Range
    2-300kcmil
  • Rated Voltage
    600V
  • Rated Current
    285A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-150N-03F
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    100K poles each monthly

1P-24P 30.0mm Single Deck Feed-Through Terminal Block Connector , 600V 285A

Detailed product Description:

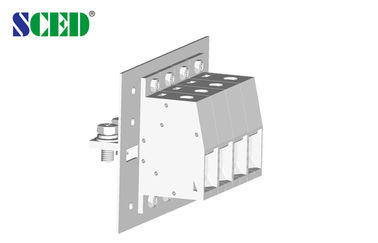

1P-24P 30.0mm Single Deck Feed-Through Terminal Block Connector, 600V 285A, Bulkhead connectors
■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks, terminal block connectors
How to order:


1P-24P 30.0mm Single Deck Feed-Through Terminal Block Connector , 600V 285A 0
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 285





Wire Range                       AWG

2-300kcmil





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 309

800 / 309

1000 / 309

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

150

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

26

Screw / Torque                    / lbf.in

M10 / 50-60






1P-24P 30.0mm Single Deck Feed-Through Terminal Block Connector , 600V 285A 1


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
