300V 18A Female Plug in Terminal Block Connector Pitch 7.62mm , 2P - 16P

300V 18A Female Plug in Terminal Block Connector Pitch 7.62mm , 2P - 16P

  • Highlight

    pluggable terminal block connector

    ,

    electrical terminal blocks

  • Type
    Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Pitch
    7.62mm
  • Number Of Contacts
    2P-16P
  • Wire Range
    12-30
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508P-76
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

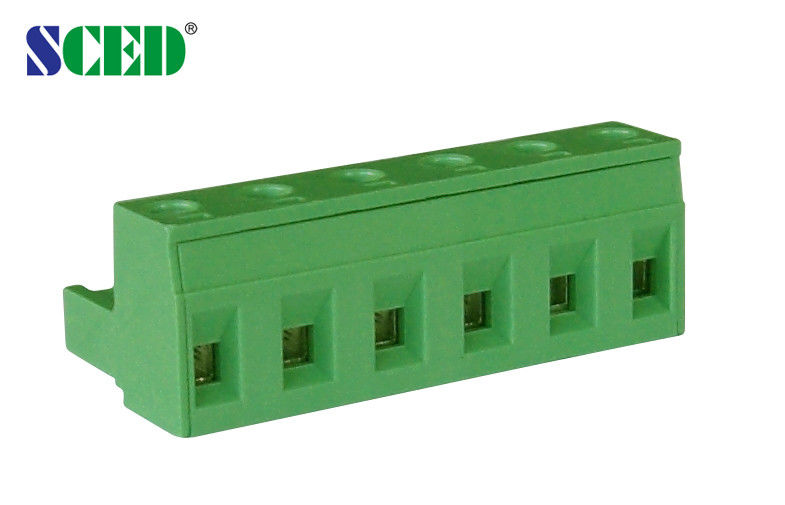

300V 18A Female Plug in Terminal Block Connector Pitch 7.62mm , 2P - 16P

Applications

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





300V 18A Female Plug in Terminal Block Connector Pitch 7.62mm, 2P - 16P

■Single Level;  □Double Levels;  □Triple Levels


This female plug match with male sockets’ series:



TP508H-76, TP508H-76V, TP508H-77, TP508H-77V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:

 300V 18A Female Plug in Terminal Block Connector Pitch 7.62mm , 2P - 16P 0



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

   300 / 18



300 / 18

Wire Range                       AWG

    12-30



12-30

IEC Technical Data



Overvoltage Category

       Ⅲ         Ⅲ         Ⅱ

Contamination Class

3          2           2

Rated Voltage / Current              V/A

    400 / 18    630 / 18    1000 / 18

Rated Surge Voltage                 KV

       6          6          6

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

               7

Screw / Torque                    / lbf.in

            M3 / 4.4-5.3





300V 18A Female Plug in Terminal Block Connector Pitch 7.62mm , 2P - 16P 1
 Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
