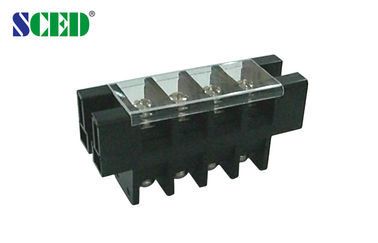

Cable Feed Through Panel Terminal Block Connector Single Deck

Cable Feed Through Panel Terminal Block Connector Single Deck

Products - Feed Through Terminal Block
  • Highlight

    pcb screw terminal blocks

    ,

    pcb mount terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Pitch
    27.00mm
  • Rated Current
    150A
  • Rated Voltage
    600V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Connectors,Electrical Terminal Blocks
  • Wire Range
    30-1/0
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD150-01-C
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Cable Feed Through Panel Terminal Block Connector Single Deck

  • Cable Feed Through Panel Terminal Block Connector Single Deck
  • Cable Feed Through Panel Terminal Block Connector Single Deck
Get Price Contact Now

Cable Feed Through Panel Terminal Block Connector Single Deck

■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks


How to order:
Cable Feed Through Panel Terminal Block Connector Single Deck 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 150

600 / 150



Wire Range                       AWG

30-1/0

30-1/0



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 150

1000 / 150

1000 / 150

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

50

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

16-18

Screw / Torque                    / lbf.in

M8 / 31-40



Cable Feed Through Panel Terminal Block Connector Single Deck 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
