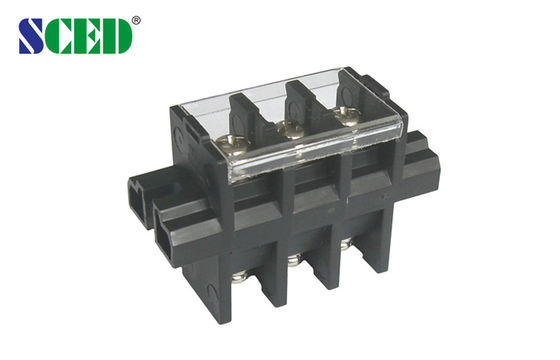

Double Decks Panel Feed Through Terminal Block For Electric Power

Double Decks Panel Feed Through Terminal Block For Electric Power

Products - Feed Through Terminal Block
  • Highlight

    pcb terminal block connectors

    ,

    pcb mount terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Pitch
    21.0mm
  • Rated Current
    101A
  • Rated Voltage
    600V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors
  • Wire Range
    2-20
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD100-01-C
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Double Decks Panel Feed Through Terminal Block For Electric Power

  • Double Decks Panel Feed Through Terminal Block For Electric Power
  • Double Decks Panel Feed Through Terminal Block For Electric Power
Get Price Contact Now



Double Decks Panel Feed Through Terminal Block For Electric Power







Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

Military, Elevator, etc..





600V 101A Panel Feed Through Terminal Block Pitch 21.0mm For Electric Power Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors



■Single Deck;  □Double decks;  □Triple decks

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors





How to order:

Double Decks Panel Feed Through Terminal Block For Electric Power 0





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 101

600 / 101

600 / 5

Wire Range                       AWG

2-20

2-20

2-20

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

1000 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11-12

Screw / Torque                    / lbf.in

M6 / 20-22





Double Decks Panel Feed Through Terminal Block For Electric Power 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ deman
