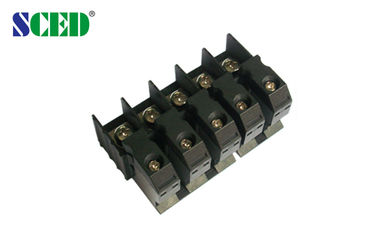

Electrical Feed Through Terminal Block Connector 600 Voltage 90A

Electrical Feed Through Terminal Block Connector 600 Voltage 90A

  • Highlight

    pcb screw terminal blocks

    ,

    pcb mount terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    2P-12P
  • Pitch
    15.0mm
  • Rated Current
    90A
  • Rated Voltage
    600V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Connectors,Electrical Terminal Blocks
  • Wire Range
    4-20
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD90-00
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    100K poles each monthly

Electrical Feed Through Terminal Block Connector 600 Voltage 90A





Electrical Feed Through Terminal Block Connector 600 Voltage 90A

Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks





How to order:
Electrical Feed Through Terminal Block Connector 600 Voltage 90A 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 90

600 / 90



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 90

1000 / 90

1000 / 90

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

10-12

Screw / Torque                    / lbf.in

M5 / 14-16



Electrical Feed Through Terminal Block Connector 600 Voltage 90A 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
