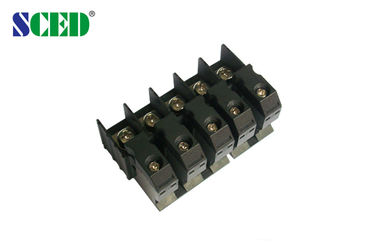

Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks

Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks

Products - Feed Through Terminal Block
  • Highlight

    pcb screw terminal blocks

    ,

    pcb terminal block connectors

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    2P-24P
  • Pitch
    12.7mm
  • Rated Current
    60A
  • Rated Voltage
    600V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors
  • Wire Range
    8-26
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD60-00
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    100K poles each monthly

Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks

  • Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks
  • Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks
Get Price Contact Now





Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks





Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..



Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.

Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks





How to order:
Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks 0




Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                       AWG

8-26

8-26



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 60

1000 / 60

1000 / 60

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M4 / 10.6-13



Screw Feed Through Terminal Block , 600V 60A Wiring Terminal Blocks 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
