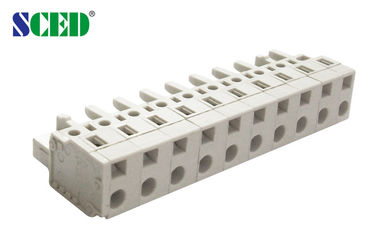

Single Level Female Pluggable Terminal Block Connector 7.5mm Pitch, 300V 15A, 2P-16P
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP508H-75, TP508H-75V
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 15 |
|
|
|
Wire Range AWG |
14-16 |
|
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
320 / 15 |
320 / 15 |
630 / 15 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Rated Connecting Capacity mm2 |
2.5 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Spring Clamp |
Stainless Steel |
||
|
Terminal / Plating |
Phosphor Bronze / Tin Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
10-11 |
||
