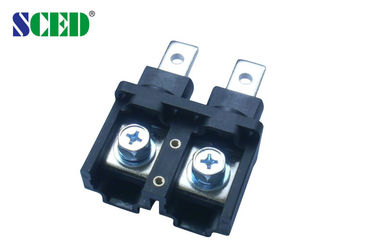

2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch

2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch

Products - Through Panel Terminal Blocks
  • Highlight

    panel mount terminal blocks

    ,

    wiring terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    2P
  • Pitch
    32.00mm
  • Rated Current
    160A
  • Rated Voltage
    600V
  • Type
    Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors
  • Wire Range
    22-2/0
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-50N-05
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    100K poles each monthly

2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch

  • 2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch
  • 2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch
Get Price Contact Now





2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:
2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 160





Wire Range                       AWG

22-2/0





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 160

800 / 160

1000 / 160

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

70

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating



Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

1

Screw / Torque                    / lbf.in

M8 / 32-40

2 Pin Through Panel Terminal Blocks PCB 160a High Voltage 32.0mm Pitch 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
