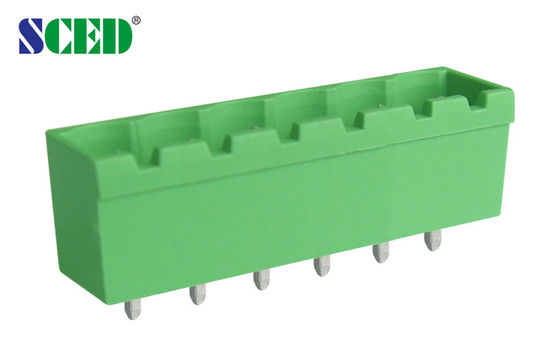

7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A

7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A

  • Highlight

    pluggable terminal block connector

    ,

    plug in terminal block

  • Wire Inlet
    Vertical Wire Inlet
  • Type
    Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors
  • Pitch
    7.62mm
  • Number Of Contacts
    Any Poles Available
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-76
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A

Pitch 7.62mm PCB Pluggable Terminal Block Connector with Male Sockets
Header, 300V 18A Plug-in Terminal Blocks


□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:

 7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A 0

Applications

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 18

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

400 / 18

630 / 18

1000 / 18

Rated Surge Voltage                 KV

6

6

6

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.4

Pin Dimension                      mm

1.0*1.0




 7.62mm PCB Pluggable Terminal Block Connector with Male Sockets 300V 18A 1
Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
