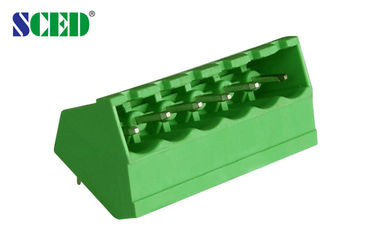

Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P

Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P

  • Highlight

    pluggable terminal block connector

    ,

    electrical terminal blocks

  • Wire Inlet
    45 Degree Wire Inlet
  • Type
    Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors
  • Pitch
    5.08mm
  • Number Of Contacts
    2P-18P
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-04
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P

Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet, 5.08mm Pitch 2-18P  300V 18A, Plug-in Terminal Blocks


□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:

 Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18





Wire Range                       AWG







IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter               mm

φ1.4

PinDimension                     mm

1.0 x 1.0





Male PCB Pluggable Terminal Block with 45 Degree Wire Inlet , 5.08mm Pitch 2-18P 1



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
