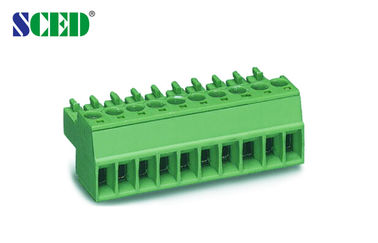

300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P

300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P

  • 300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P
300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381P-20
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors Pitch: 3.50mm
Number Of Contacts: 2P-22P Wire Range: 16-30
Rated Voltage: 300V Rated Current: 8A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

pluggable terminal block connector

,

plug in terminal block

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


300V 8A Female Pluggable Terminal Block, PCB Terminal Blocks Pitch 3.50mm 2P - 22P

■Single Level;  □Double Levels;  □Triple Levels


This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors



How to order:

 300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P 0


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG

16-30





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

7

Screw / Torque                    / lbf.in

M2 / 2-2.2





300V 8A Female Pluggable Terminal Block , PCB Terminal Blocks Pitch 3.50mm 2P - 22P 1



Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
