| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP381P-00 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks | Pitch: | 3.81mm |
|---|---|---|---|
| Number Of Contacts: | 2P-22P | Wire Range: | 16-30 |
| Rated Voltage: | 300V | Rated Current: | 8A |
| Color: | Green | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | pluggable terminal block connector,plug in terminal block |
||
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

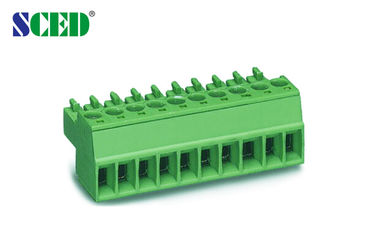

Green Plastic Female Pluggable Terminal Blocks Connectors Pitch 3.81mm, 300V 8A 2P-22P,
■Single Level; □Double Levels; □Triple Levels
This female plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 8 |
|
|
Wire Range AWG | 16-30 |
|
|
IEC Technical Data |
|
|
|
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass /Nickel Plated | ||
Terminal / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M2 / 2-2.2 | ||
