| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP381H-01 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Wire Inlet: | Vertical Wire Inlet | Type: | Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks |
|---|---|---|---|
| Pitch: | 3.81mm | Number Of Contacts: | 2*2P-22*2P |
| Rated Voltage: | 300V | Rated Current: | 8A |
| Color: | Green | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | pluggable terminal block connector,plug in terminal block |
||

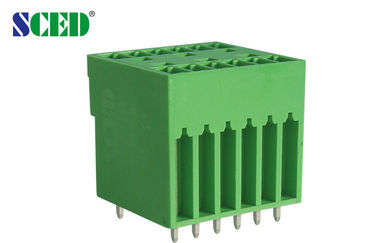

3.81mm Double Levels Pluggable Terminal Block Header For PCB, Male Sockets 2*2P-22*2P 300V 8A
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double Levels; □Triple Levels
This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 8 |
|
|
Wire Range AWG |
|
|
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Terminal / Plating | Brass / Tin Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ1.2 | ||
PinDimension mm | 0.8 x 0.8 | ||
Competitive Advantage:
