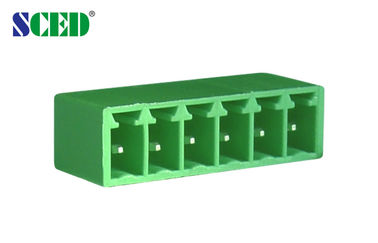

Pitch 3.81mm pin header PCB Pluggable Terminal Block

Pitch 3.81mm pin header PCB Pluggable Terminal Block

  • Pitch 3.81mm pin header PCB Pluggable Terminal Block
Pitch 3.81mm pin header PCB Pluggable Terminal Block
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP381H-00V
Payment & Shipping Terms:
Minimum Order Quantity: 2000
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Wire Inlet: Right Angle Wire Inlet Type: Pluggable Terminal Block,Terminal Block Connectors, PCB Connectors
Pitch: 3.81mm Number Of Contacts: 2P-22P
Rated Voltage: 300V Rated Current: 8A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Materials: PA66 And Brass
Highlight:

pluggable terminal block connector

,

plug in terminal block

Pitch 3.81mm PCB Pluggable Terminal Block Connectors 300V 8A 2P-22P with Header

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors






How to order:

Pitch 3.81mm pin header PCB Pluggable Terminal Block 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

1.2

Pin Dimension                      mm

0.8 x 0.8




Pitch 3.81mm pin header PCB Pluggable Terminal Block 1


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
