| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TP500P-02 |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Terminal Block Connector,Terminal Block Connectors, PCB Connectors | Pitch: | 5.00mm |
|---|---|---|---|
| Number Of Contacts: | 2P-24P | Wire Range: | 12-30 |
| Rated Voltage: | 300V | Rated Current: | 18A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| High Light: | plug in terminal block connector,pcb terminal block connector |
||
Detailed product Description:

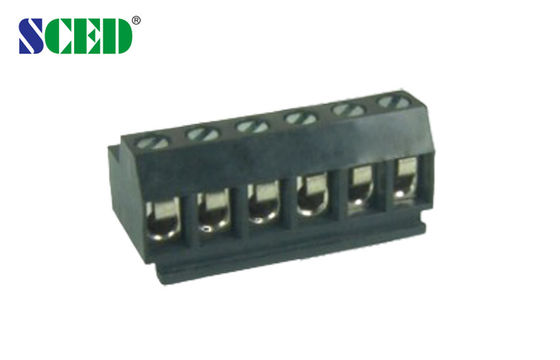

Female Plug-in / Pluggable Terminal Block Connector Pitch 5.00mm 2P-24P 300V 18A
■Single Deck; □Double decks; □Triple decks
This female plug match with male pins’ series: TP500H-01, TP500H-02V
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable terminal blocks, Plug in terminal blocks, Electrical terminal Blocks
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 18 |
|
|
Wire Range AWG | 12-30 |
|
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 250 / 10 | 320 / 10 | 630 / 10 |
Rated Surge Voltage KV | 4 | 4 | 4 |
Rated Connecting Capacity mm2 | 2.5 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass /Nickel Plated | ||
Terminal / Plating | Phosphor Bronze / Tin Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 7 | ||
Screw / Torque / lbf.in | M2.5 / 3-3.5 | ||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
