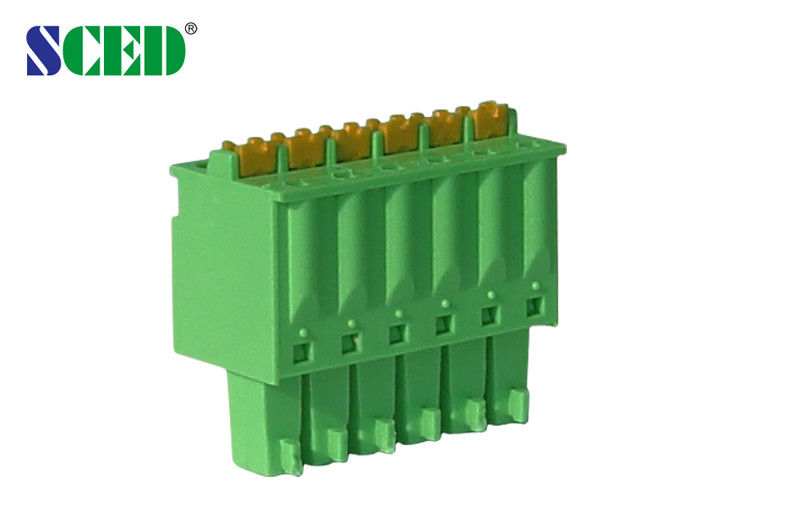

2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

Products - Terminal Block Connector
  • Highlight

    plug in terminal block connector

    ,

    pcb terminal block connector

  • Type
    Terminal Block Connector,Terminal Block Connectors, PCB Connectors
  • Pitch
    3.81mm
  • Number Of Contacts
    2P-22P
  • Wire Range
    16-30
  • Rated Voltage
    300V
  • Rated Current
    8A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP381P-03
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

  • 2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets
  • 2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets
Get Price Contact Now

Detailed product Description:
2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets

■Single Level;  □Double Levels;  □Triple Levels

This plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable terminal blocks, Plug in terminal blocks, Electrical terminal Blocks





How to order:

2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 8





Wire Range                       AWG

16-30





IEC Technical Data







Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

9-10




2P - 22P 3.81mm Pluggable Terminal Block Connectors for Power Supply , Female Sockets 1


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
