| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TD75-01-C |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Type: | Terminal Block Connector,Terminal Block Connectors, PCB Connectors | Pitch: | 16.0mm |
|---|---|---|---|
| Number Of Contacts: | Any Poles Available | Wire Range: | 4-22 |
| Rated Voltage: | 600V | Rated Current: | 75A |
| Color: | Black | Applications: | PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control |
| Level: | Single Level | Deck: | Single Deck |
| High Light: | barrier terminal block connector,pcb terminal block connector |
||
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Detailed product Description:

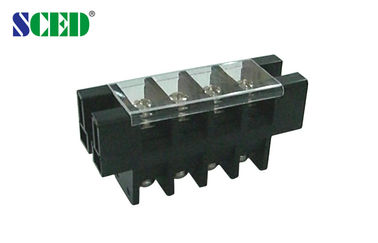

16.0mm Pitch Perforation Through Panel Terminal Block Connector 600V 75A
,Any poles available
■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 75 |
600 / 75 |
600 / 5 |
|
Wire Range AWG |
4-22 |
4-22 |
4-22 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
800 / 75 |
1000 / 75 |
1000 / 75 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
22 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PBT/ UL94, V-0 |
||
|
Conduction Board / Plating |
Brass /Nickel Plated |
||
|
Screw / Plating |
Steel / Nickel Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
12-13 |
||
|
Screw / Torque / lbf.in |
M 6 / 20-22 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
