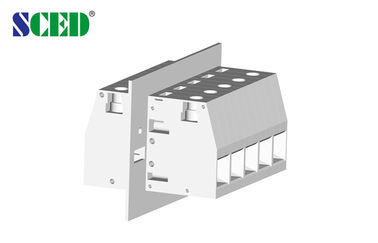

Power Supply Through Panel Terminal Blocks PCB 600V 150A UL CE
-
Highlight
panel mount terminal blocks
,wiring terminal block
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
ColorGrey
-
Number Of ContactsAny Poles Available
-
Pitch18.8mm
-
Rated Current150A
-
Rated Voltage600V
-
TypeThrough Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors
-
Wire Range6-1/0
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTR-50N-02
-
Minimum Order Quantity200
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability100K poles each monthly
Power Supply Through Panel Terminal Blocks PCB 600V 150A UL CE
Power Supply Through Panel Terminal Blocks PCB 600V 150A UL CE
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
600 / 150 |
|
600 / 5 |
|
Wire Range AWG |
6-1/0 |
|
6-1/0 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
830 / 150 |
1000 / 150 |
1000 / 150 |
|
Rated Surge Voltage KV |
8 |
8 |
8 |
|
Rated Connecting Capacity mm2 |
50 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Steel / Nickel Plated |
||
|
Conduction Board / Plating |
Copper / Nickel Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
Stripping Length mm |
24 |
||
|
Screw / Torque / lbf.in |
M6 / 38-40 |
||
