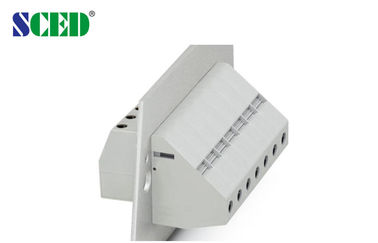

600 Voltage Insulated Feed Through Terminal Blocks For Industry Control

600 Voltage Insulated Feed Through Terminal Blocks For Industry Control

  • Highlight

    panel mount terminal blocks

    ,

    wiring terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Grey
  • Number Of Contacts
    2P-24P
  • Pitch
    15.1mm
  • Rated Voltage
    600V
  • Type
    Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-35N-03
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    100K poles each monthly

600 Voltage Insulated Feed Through Terminal Blocks For Industry Control



600 Voltage Insulated Feed Through Terminal Blocks For Industry Control



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors


How to order:
600 Voltage Insulated Feed Through Terminal Blocks For Industry Control 0



Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 75



600 / 5

Wire Range                       AWG

2-8



2-8

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 125

800 / 125

1000 / 125

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Steel / Nickel Plated

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

19

Screw / Torque                    / lbf.in

M5 / 22-25





Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
