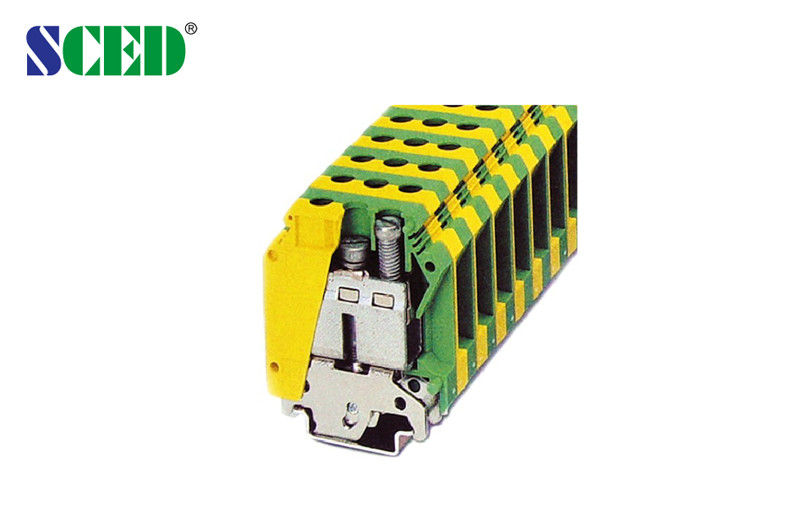

15.2mm Plastic Ground Din Rail Terminal Blocks For Electric Power UL CE

15.2mm Plastic Ground Din Rail Terminal Blocks For Electric Power UL CE

15.2mm Plastic Ground Din Rail Terminal Blocks For Electric Power UL CE

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG35N

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Green & Yellow
Deck: Single Deck Type: Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Width: 15.2mm Wire Range: 18-1/0





15.2mm Plastic Ground Din Rail Terminal Blocks For Electric Power UL CE



Detailed product Description:



15.2mm Plastic Din Rail Terminal Blocks, Ground Terminal Block AWG 18-1/0

Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.

Ground terminal blocks, Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks







How to order:





15.2mm Plastic Ground Din Rail Terminal Blocks For Electric Power UL CE

Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                    Green & Yellow

TR-KG35N

Zack Strip                      White

ZB10         SZS1.0x6.5

Rail Material

Aluminum / Steel

Dimensions

15.2/50

Height (U35: 7.5/U35: 15G 32)              mm

62/69.5/67

Wire Fixing Screw / Torque                 Nm

M6 / 3.2-3.7

Center Fixing Screw / Torque                Nm

M5 / 2.5-3

Stripping Length                          mm

15







Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
