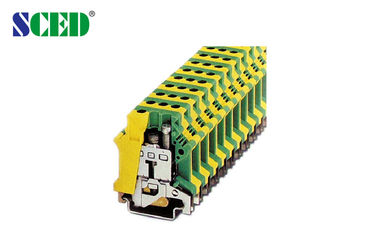

Electric Power Din Rail Terminal Blocks Connectors High Voltage 12.2mm Width

Electric Power Din Rail Terminal Blocks Connectors High Voltage 12.2mm Width

  • Electric Power Din Rail Terminal Blocks Connectors High Voltage 12.2mm Width
Electric Power Din Rail Terminal Blocks Connectors High Voltage 12.2mm Width
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG16N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Green & Yellow
Deck: Single Deck Type: Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
Width: 12.2mm Wire Range: 22-4
Highlight:

rail mounted terminal blocks

,

din rail terminals blocks



Electric Power Din Rail Terminal Blocks Connectors High Voltage 12.2mm Width



Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..





Detailed product Description:





■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.

Ground terminal blocks, Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





How to order:





Electric Power Din Rail Terminal Blocks Connectors High Voltage 12.2mm Width 0



Parameter and Drawing Specifications:





Description                    Color

Type

Terminal                    Green & Yellow

TR-KG16N

Zack Strip                      White

ZB10         SZS1.0x4.0

Rail Material

Aluminum / Steel

Dimensions

12.2/42.5

Height (U35: 7.5/U35: 15G 32)              mm

54/61.5/59

Wire Fixing Screw / Torque                 Nm

M4 / 1.5-1.8

Center Fixing Screw / Torque                Nm

M4 / 1.5-1.8

Stripping Length                          mm

11



Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
