| Place of Origin: | Shenzhen, China |
| Brand Name: | SCED |
| Certification: | UL, CE |
| Model Number: | TR-KG10N |
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 7-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KK poles each monthly |
| Applications: | Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev | Color: | Green & Yellow |
|---|---|---|---|
| Deck: | Single Deck | Type: | Din Rail Terminal Blocks,Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks |
| Width: | 10.2mm | Wire Range: | 24-6 |
| High Light: | rail mounted terminal blocks,din rail mount terminal blocks |
||

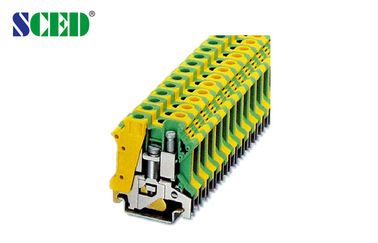

Electrical Din Rail Terminal Blocks , 10.2mm Wire Connecting Terminals
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Detailed product Description:
AWG 24 - 6 Electrical Terminal Block, 10.2mm Din Rail Terminal Blocks
Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green & Yellow. Other colors also available, please refer to below How to Order and select the color you want.
Ground terminal blocks, Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Green & Yellow |
TR-KG10N |
|
Zack Strip White |
ZB10 SZS1.0x4.0 |
|
Rail Material |
Aluminum / Steel |
|
Dimensions |
10.2/42.5 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52 |
|
Wire Fixing Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Center Fixing Screw / Torque Nm |
M4 / 1.5-1.8 |
|
Stripping Length mm |
10 |
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
