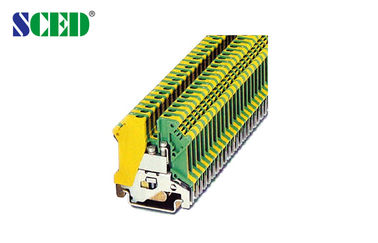

Power Distribution Din Rail Terminal Blocks / Wiring Terminal Connectors

Power Distribution Din Rail Terminal Blocks / Wiring Terminal Connectors

  • Power Distribution Din Rail Terminal Blocks / Wiring Terminal Connectors
Power Distribution Din Rail Terminal Blocks / Wiring Terminal Connectors
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-KG5N
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev Color: Grey
Deck: Single Deck Type: Din Rail Terminal Blocks,Ground Terminal Blocks, Din Rail Terminal Blocks
Width: 6.2mm Wire Range: 26-10
High Light:

din rail mount terminal blocks

,

din rail terminals blocks





Power Distribution Din Rail Terminal Blocks / Wiring Terminal Connectors



Detailed product Description:



Terminal Width: 6.2mm, AWG:26-10, Din Rail Terminal Blocks for Power Supply ,Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Ground terminal blocks, Din rail terminal blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks





How to order:





Power Distribution Din Rail Terminal Blocks / Wiring Terminal Connectors 0

Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                    Green & Yellow

TR-KG5N

Zack Strip                      White

ZB6         SZS0.6x3.5

Rail Material

Aluminum / Steel

Dimensions

6.2/42.5

Height (U35: 7.5/U35: 15G 32)              mm

47/54.5/52

Wire Fixing Screw / Torque                 Nm

M3 / 0.6-0.8

Center Fixing Screw / Torque                Nm

M3 / 0.6-0.8

Stripping Length                          mm

8







Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
