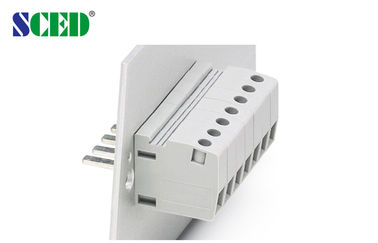

65AMP PCB Through Panel Terminal Blocks Connectors 2 Pin - 24 Pin

65AMP PCB Through Panel Terminal Blocks Connectors 2 Pin - 24 Pin

65AMP PCB Through Panel Terminal Blocks Connectors 2 Pin - 24 Pin

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-10N-07

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Grey
Number Of Contacts: 2P-24P Pitch: 10.1mm
Rated Current: 65A Rated Voltage: 600V
Type: Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors Wire Range: 6-24


65AMP PCB Through Panel Terminal Blocks Connectors 2 Pin - 24 Pin



How to order:
65AMP PCB Through Panel Terminal Blocks Connectors 2 Pin - 24 Pin


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


600V 65A 2P-24P PCB Through Panel Terminal Block Connectors Pitch 10.1mm Feed-Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 65



600 / 5

Wire Range                       AWG

6-24



6-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11

Screw / Torque                    / lbf.in

M4 / 10.6-13



65AMP PCB Through Panel Terminal Blocks Connectors 2 Pin - 24 Pin


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
