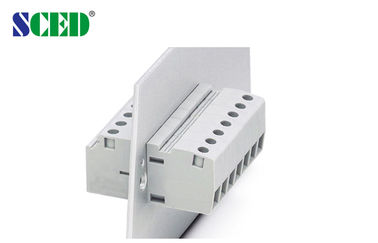

65 Amp Feed Through Panel Terminal Blocks Pitch PCB 10.1mm 24 Pin

65 Amp Feed Through Panel Terminal Blocks Pitch PCB 10.1mm 24 Pin

    • 65 Amp Feed Through Panel Terminal Blocks Pitch PCB 10.1mm 24 Pin
  • 65 Amp Feed Through Panel Terminal Blocks Pitch PCB 10.1mm 24 Pin

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TR-10N-06

    Payment & Shipping Terms:

    Minimum Order Quantity: 200
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 100K poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Grey
    Number Of Contacts: 2P-24P Pitch: 10.1mm
    Rated Current: 65A Rated Voltage: 600V
    Type: Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors Wire Range: 6-24
    High Light:

    panel mount terminal blocks

    ,

    feed through terminal blocks





    65 Amp Feed Through Panel Terminal Blocks Pitch PCB 10.1mm 24 Pin




    ■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
    ■Single Deck;  □Double decks;  □Triple decks
    Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
    you want.
    Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
    terminal block connectors

    How to order:
    65 Amp Feed Through Panel Terminal Blocks Pitch PCB 10.1mm 24 Pin 0


    Applications:

    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
    Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
    Military, Elevator, etc..


    Parameter and Drawing Specifications:

    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    600 / 65



    600 / 5

    Wire Range                       AWG

    6-24



    6-24

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    630 / 76

    800 / 76

    1000 / 76

    Rated Surge Voltage                 KV

    6

    6

    6

    Rated Connecting Capacity           mm2

    10

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Conduction Board / Plating

    Brass / Nickel Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    Stripping Length                    mm

    11

    Screw / Torque                    / lbf.in

    M4 / 10.6-13



    65 Amp Feed Through Panel Terminal Blocks Pitch PCB 10.1mm 24 Pin 1


    Competitive Advantage:


    1. Stable good quality

    2. Competitive price

    3. Quickly response

    4. Full range products for selection

    5. Flexible to design the exact part per customers’ demand
