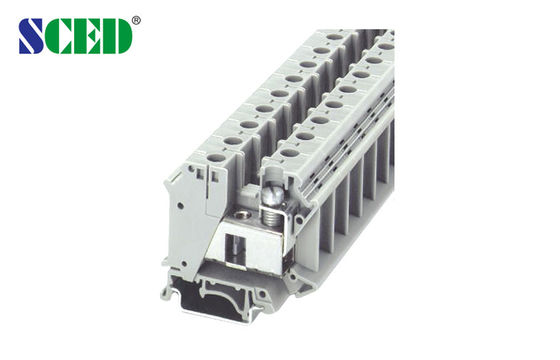

15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks

15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks

  • Highlight

    din rail mount terminal blocks

    ,

    din rail terminals blocks

  • Rated Current
    115A
  • Rated Voltage
    600V
  • Applications
    Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev
  • Color
    Grey
  • Deck
    Double Decks
  • Type
    Din Rail Terminal Blocks,Ground Terminal Blocks, Din Rail Terminal Blocks
  • Width
    15.2mm
  • Wire Range
    18-2
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-35N
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks





15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks





Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand





Detailed product Description:







■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  ■Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks







How to order:



15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks 0



Applications:



Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..



Parameter and Drawing Specifications:



Description                    Color

Type

Terminal                          Grey

 TR-35N

End Cover                      Grey                    15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks 1



Fixed Bridge                                    15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks 2

FBI 2-15        Imax:135A

Insertion Bridge                       15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks 3

EB  3-15       Imax:120A

Separating Plate                                        15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks 4

TS-K

Partition Plate                                          15.2mm Grey Din Rail PCB Terminal Blocks 600V 115A Double Decks 5

TP-TR-35(7.5mm thick)

Zack Strip                      White

ZB10

Screwdriver

SZS1.0×6.5

Rail Material

aluminum

Dimensions                                                        mm

                      15.2/55/-

Height (U35: 7.5/U35: 15G 32)                          mm

58.5/51/59

Screw / Torque                                                  Nm

M36/ 3.2-3.7

Stripping Length                                                mm

16

IEC Technical Data



Max. Load Current / Cross Section             A / mm2

                         125/35

Rated Surge Voltage / Contamination Class    KV / -

                           8 / 3

Surge Voltage Category

                            Ⅲ
