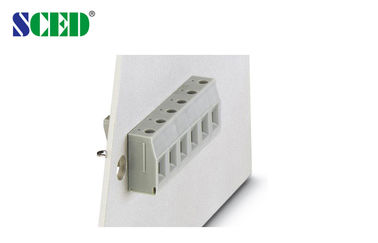

Plastic Through Panel Terminal Blocks / 10.0mm Electrical Wire Terminals

Plastic Through Panel Terminal Blocks / 10.0mm Electrical Wire Terminals

  • Plastic Through Panel Terminal Blocks / 10.0mm Electrical Wire Terminals
Plastic Through Panel Terminal Blocks / 10.0mm Electrical Wire Terminals
Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TR-4N-03
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Grey
Number Of Contacts: 2P-24P Pitch: 10.00mm
Rated Current: 30A Rated Voltage: 300V
Type: Through Panel Terminal Block,Through Wall Terminal Blocks, Bulkhead Connectors Wire Range: 10-30
High Light:

panel mount terminal blocks

,

wiring terminal block





Plastic Through Panel Terminal Blocks / 10.0mm Electrical Wire Terminals

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks,
terminal block connectors

How to order:
Plastic Through Panel Terminal Blocks / 10.0mm Electrical Wire Terminals 0

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30



300 / 10

Wire Range                       AWG

10-30



10-30

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

500 / 32

630 / 32

1000 / 32

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

8

Screw / Torque                    / lbf.in

M3 / 5.3-7



Plastic Through Panel Terminal Blocks / 10.0mm Electrical Wire Terminals 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
