screw terminal block connector
,screw connection terminal block
-
TypePCB Screw Terminal Block,Electrical Terminal Blocks, Euro Raising Terminal Blocks
-
Pitch6.35mm
-
Number Of Contacts2P-16P
-
Wire Range10-22
-
Rated Voltage600V
-
Rated Current30A
-
ColorBlack
-
ApplicationsPCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
-
Place of OriginShenzhen, China
-
Brand NameSCED
-
CertificationUL, CE
-
Model NumberTJ952-03-A1
-
Minimum Order Quantity500
-
PriceGet latest price
-
Packaging DetailsStandard Export Carton
-
Delivery Time7-20 working days
-
Payment TermsT/T
-
Supply Ability1KK poles each monthly

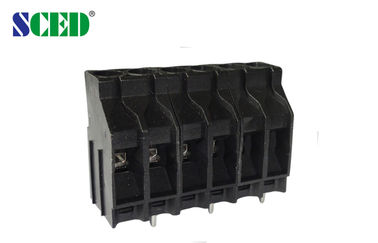

Black 2P-16P PCB Screw Terminal Block , Pitch 6.35mm 600V 30A
Pitch 6.35mm, 600V 30A, 2P-16P, PCB Terminal blocks – Euro type Raising series
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 30 | 600 / 30 |
|
Wire Range AWG | 10-22 | 10-22 |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 1000 / 32 | 1000 / 32 | 1000 / 32 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 4.0 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Clamp Cage / Plating | Brass / Nickel Plated | ||
Terminal / Plating | Brass / Tin Plated | ||
Screw / Plating | Steel / Nickel Plated | ||
Other Data |
| ||
PCB Hole Diameter mm | φ1.6 | ||
Stripping Length mm | 7-8 | ||
Screw / Torque / lbf.in | M3 / 4.4-5.3 | ||
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
Our products are sold all over the world, you can rest assured.
