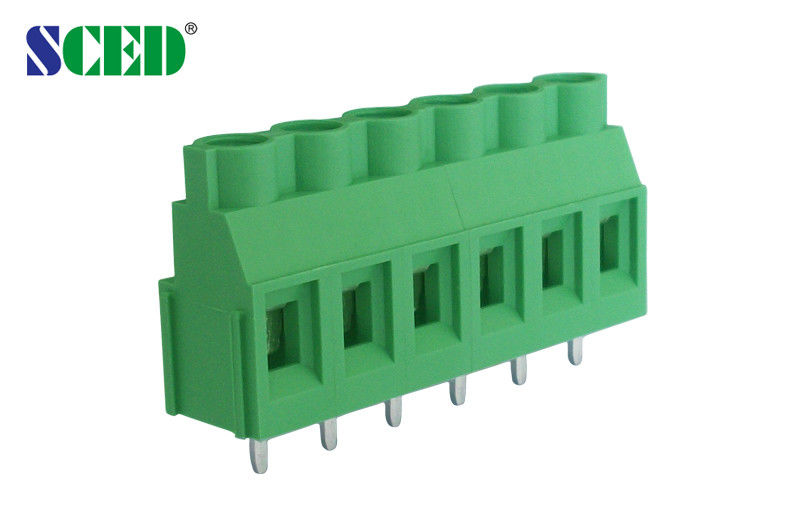

Pitch 7.62mm PCB Mount Terminal Blocks For Server Site , 300V 30A 2P - 16P

Pitch 7.62mm PCB Mount Terminal Blocks For Server Site , 300V 30A 2P - 16P

Pitch 7.62mm PCB Mount Terminal Blocks For Server Site , 300V 30A 2P - 16P

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ952-02

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: PCB Screw Terminal Block,Electrical Terminal Blocks, Euro Raising Terminal Blocks Pitch: 7.62mm
Number Of Contacts: 2P-16P Wire Range: 10-30
Rated Voltage: 300V Rated Current: 30A
Color: Green Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control



Pitch 7.62mm, 300V 30A, 2P-16P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer


How to order:
Pitch 7.62mm PCB Mount Terminal Blocks For Server Site , 300V 30A 2P - 16P


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 30

300 / 30



Wire Range                       AWG

10-30

10-30



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 32

1000 / 32

1000 / 32

Rated Surge Voltage                 KV

6

8

6

Rated Connecting Capacity           mm2

4.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.9

Stripping Length                    mm

7-8

Screw / Torque                    / lbf.in

M3 / 4.4-5.3




Pitch 7.62mm PCB Mount Terminal Blocks For Server Site , 300V 30A 2P - 16P

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
