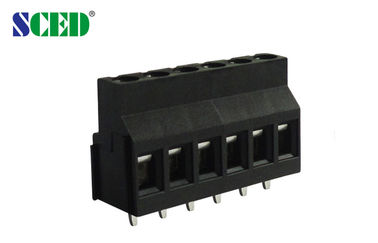

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

  • Highlight

    screw type terminal block

    ,

    screw terminal block connector

  • Type
    PCB Screw Terminal Block,Electrical Terminal Blocks, Euro Raising Terminal Blocks
  • Pitch
    5.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    12-26
  • Rated Voltage
    300V
  • Rated Current
    10A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ500-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

Electrical PCB Mount Terminal Block Pitch 5.0mm, 300V 10A Screw Type Terminal Blocks



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer





How to order:

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:





UL Technical Data

B          C          D

Rated Voltage / Current              V/A

   300 / 10                  300 / 10

Wire Range                       AWG

   12-26                     12-26

IEC Technical Data



Overvoltage Category

       Ⅲ         Ⅲ         Ⅱ

Contamination Class

3          2           2

Rated Voltage / Current              V/A

    250 / 10     400 / 10    630 / 10

Rated Surge Voltage                 KV

       4          4           4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass /Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                  mm

              φ1.5

Stripping Length                    mm

               7-8

Screw / Torque                    / lbf.in

            M3 / 4.4-5.3





Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks 1

Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
