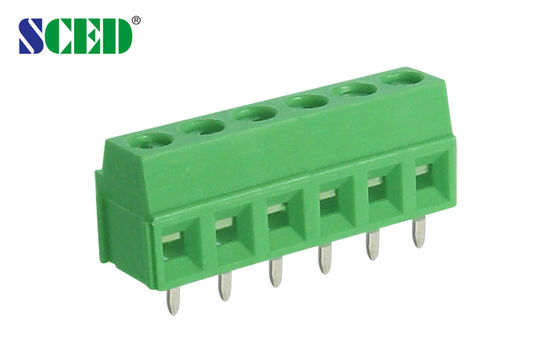

Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A 2P - 28P

Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A 2P - 28P

Products - PCB Screw Terminal Block
  • Highlight

    screw terminal block connector

    ,

    screw connection terminal block

  • Type
    PCB Screw Terminal Block,Electrical Terminal Blocks, Euro Raising Terminal Blocks
  • Pitch
    3.81mm
  • Number Of Contacts
    2P-28P
  • Wire Range
    16-24
  • Rated Voltage
    300V
  • Rated Current
    10A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ381-00
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A 2P - 28P

  • Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A 2P - 28P
  • Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A 2P - 28P
Get Price Contact Now

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand


Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A, 2P - 28P  Euro type Raising series

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer




How to order:
Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A 2P - 28P 0


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current        V/A

300 / 10





Wire Range                       AWG

16-24





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0



Single Deck PCB Screw Terminal Blocks 3.81mm Pitch 300V 10A 2P - 28P 1
