2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66

2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66

  • 2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66
  • 2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66
2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66
Product Details:
Place of Origin: China
Brand Name: SCED
Certification: CE,UL
Model Number: TP381P-20
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.051-0.12 per pole
Packaging Details: Standard export packing carton, or according to customers demand.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Color: Green Type: Female Part
Pitch: 3.5mm Voltage: 300V
Current: 8A Wire Range: 16-30 AWG
Screw: M2 Plastic: PA66
Stripping Length: 7mm Clamp Cage: Brass
High Light:

8A PA66 Pluggable Terminal Block

,

M2 Screw Pluggable Terminal Block Connector

,

PCB Pluggable Terminal Block

Female Pluggable Terminal Block 3.5mm Pitch 300V 8A 2-22 Poles PA66 M2 Screw



Detailed product Description:



Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



Levels: ■Single Level; □Double Levels; □Triple Levels



This female plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.



How to order:



2-22 Poles Female Pluggable Terminal Block Connector 3.5mm Pitch 300V 8A PA66 0

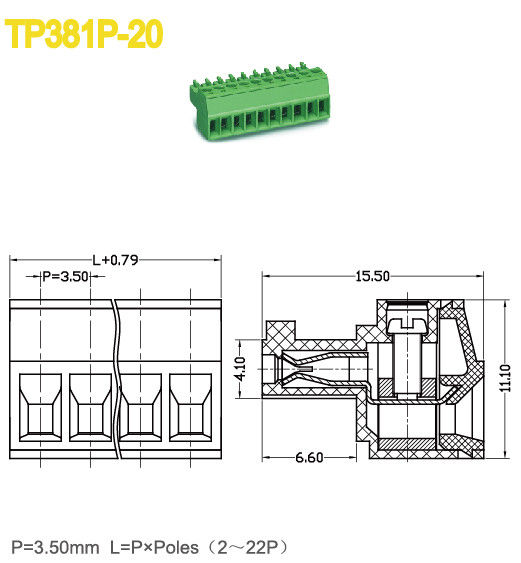

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 8
Wire Range AWG 16-30
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 160 / 8 160 / 8 320 / 8
Rated Surge Voltage KV 2.5 2.5 2.5
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M2 / 2-2.2



Competitive Advantage:



  1. OEM and ODM service available
  2. More than 1000 models for selection
  3. High quality and competitive price
  4. Good service and quick response

Applications:



Normally, our products can be used in following:



1. Communication, Power Supply, Industrial Control, Medical Equipment

2. Security, PCB, Automation, Military, Rail Transportation

3. Server Site, Switch, Electric Lighting, Frequency Converter etc.
