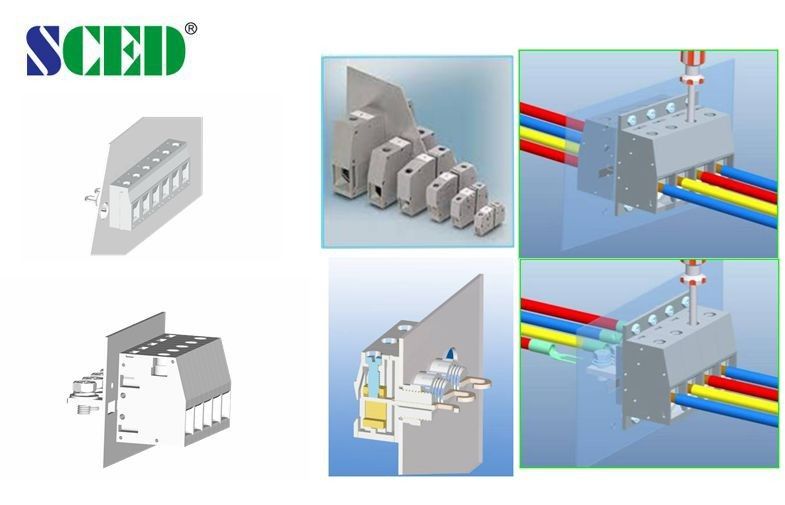

300V 50A PA66 Panel Mount Terminal Block 10mm Width Nickel Plated

300V 50A PA66 Panel Mount Terminal Block 10mm Width Nickel Plated

Products - Through Panel Terminal Blocks
  • Highlight

    Frequency Converters Panel Mount Terminal Block

    ,

    10mm Panel Mount Terminal Block

    ,

    PA66 Through Panel Terminal Blocks

  • Color
    Grey
  • Screw
    M4
  • Insulation Material
    PA66
  • Inflammability Class
    UL94-V0
  • Clamp Cage
    Brass
  • Plating
    Nickel Plated
  • Terminal Width
    10mm
  • Voltage
    600V
  • Current
    30A
  • Stripping Length
    9mm
  • Place of Origin
    Guangdong, China
  • Brand Name
    SCED
  • Certification
    CE,UL,CUL, CQC, VDE etc.
  • Model Number
    TR-6N-02
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.015-0.035
  • Packaging Details
    Standard Inner box dimension: 168 x 134 x 47mm
  • Delivery Time
    5-20 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000000 Pole/Poles per Month

300V 50A PA66 Panel Mount Terminal Block 10mm Width Nickel Plated

  • 300V 50A PA66 Panel Mount Terminal Block 10mm Width Nickel Plated
  • 300V 50A PA66 Panel Mount Terminal Block 10mm Width Nickel Plated
Get Price Contact Now

300V 50A PA66 Panel Mount Terminal Block 10mm Terminal Width



Detailed product Description:



Pitch 10.0mm, 600V 50A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey.



Applications:



They can be used in following fileds:



Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power,PCB, Frequency Converters, Server Site, Switch,Security, Medicine Equipment, Military, Elevator, etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 50



600 / 5

Wire Range                       AWG

8-26



8-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 57

830 / 57

1000 / 57

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9

Screw / Torque                    / lbf.in

M4 / 10.6-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. OEM and ODM service.
