Place of Origin: | China |
Brand Name: | SCED |
Certification: | UL,CE,CUL,CQC,VDE etc. |
Model Number: | TP381P-23 |
Minimum Order Quantity: | 1000 Piece/Pieces |
---|---|
Price: | USD 0.05 -0.12 Per Pole |
Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
Delivery Time: | 5-20 Working Days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000000 Pole/Poles per Month |
Pitch: | 3.81mm | Wire Range: | 16-30 AWG |
---|---|---|---|
Poles: | 2-22 Poles | Current: | 8A |
Voltage: | 300V | Insulation Material: | PA66 |
Inflammability Class: | UL94-V0 | Stripping Length: | 9-10mm |
Insulation Resistance: | Above DC500V, 500MΩ | Contact Resistance: | Less Than 8mΩ |
High Light: | Pluggable Terminal Block PA66 Insulation,Phosphor Bronze Pluggable Terminal Block,8A Plug In Terminal Blocks |

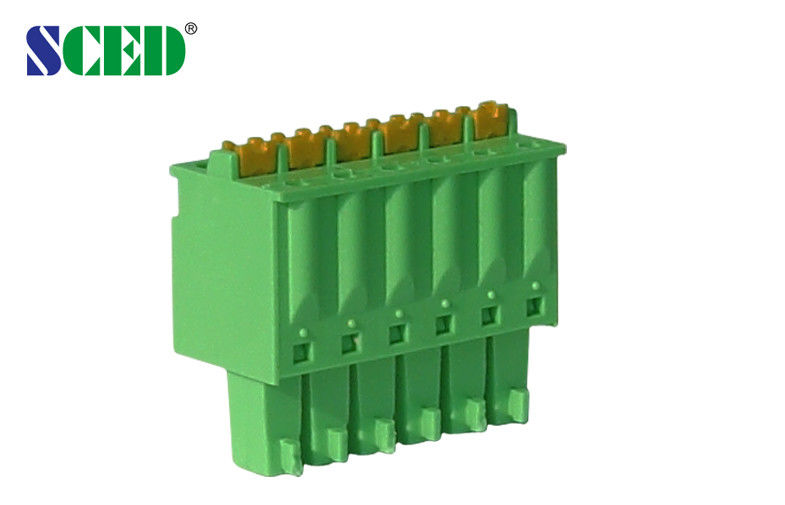

Spacing 3.5mm Pluggable Terminal Block Female Green 2-22 Positions 300V/8A UL94-V0
Detailed product Description:

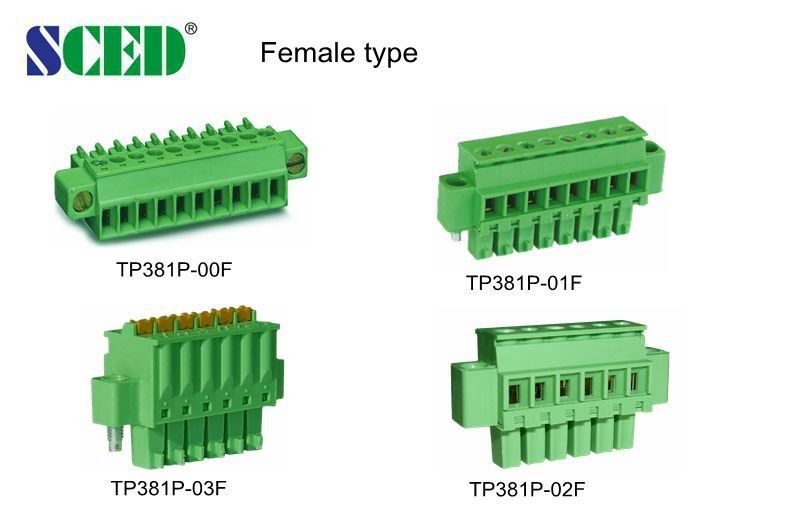

Plug, Female Sockets, Pitch: 3.50mm, 300V 8A, 2P-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
■Single Level; □Double Levels; □Triple Levels
This plug match with male sockets’ series: TP381H-20, TP381H-20V, TP381H-22, TP381H-22V.
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 300 / 8 | ||
Wire Range AWG | 16-30 | ||
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 160 / 8 | 160 / 8 | 320 / 8 |
Rated Surge Voltage KV | 2.5 | 2.5 | 2.5 |
Rated Connecting Capacity mm2 | 1.5 | ||
Material | |||
Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
Spring Clamp | Stainless Steel | ||
Terminal / Plating | Phosphor Bronze / Tin Plated | ||
Other Data | |||
Stripping Length mm | 9-10 |
Competitive Advantage:
