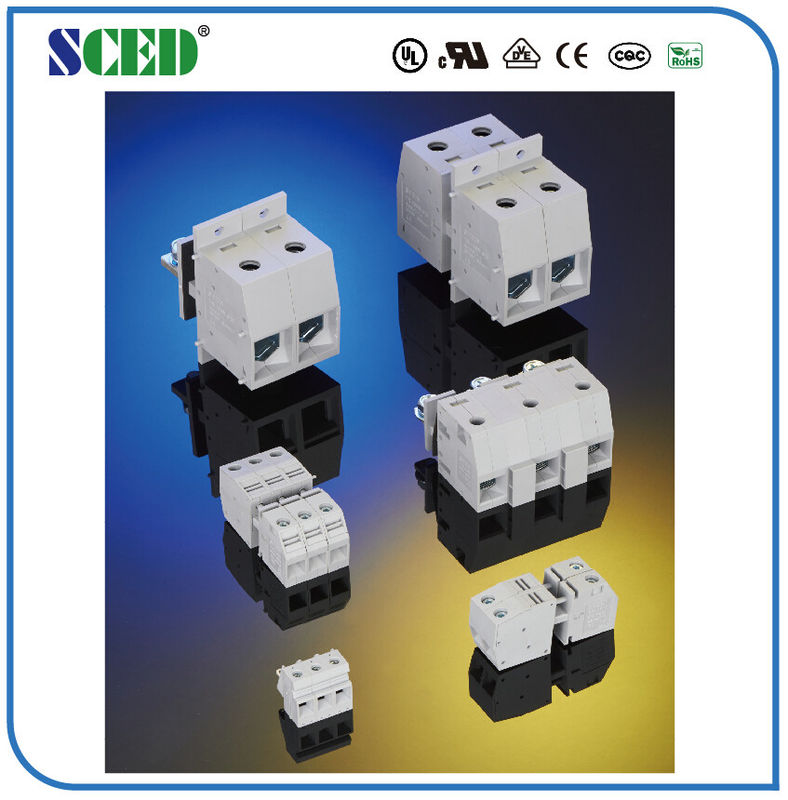

UL94-V0 Brass 300V 65A Feed Through Terminal Blocks M4 PA66 10.1mm Width

UL94-V0 Brass 300V 65A Feed Through Terminal Blocks M4 PA66 10.1mm Width

  • UL94-V0 Brass 300V 65A Feed Through Terminal Blocks M4 PA66 10.1mm Width
  • UL94-V0 Brass 300V 65A Feed Through Terminal Blocks M4 PA66 10.1mm Width
UL94-V0 Brass 300V 65A Feed Through Terminal Blocks M4 PA66 10.1mm Width
Product Details:
Place of Origin: Guangdong, China
Brand Name: SCED
Certification: UL,CE,CUL,CQC and VDE etc.
Model Number: TR-10N-07
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: USD 0.45-0.85 per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 working days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Current: 65A Voltage: 300V
Insulation Material: PA66 Terminal Width: 10.1mm
Screw: Steel Stripping Length: 11mm
Wire Range: 6-24 AWG Inflammability Class: UL94, V-0
Rated Surge Voltage: No Abnormal Within 1 Minute Contact Resistance: Less Than 8mΩ
High Light:

PA66 Insulation Feed Through Terminal Blocks

,

10.1mm Feed Through Terminal Blocks

,

M4 Screw Through Panel Terminal Blocks

300V 65A Through Panel Terminal Blocks UL94-V0 Brass M4 PA66 10.1mm Terminal Width



Detailed product Description:



Pitch 10.1mm, 300V 65A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available.



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment etc..



Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 65



600 / 5

Wire Range                       AWG

6-24



6-24

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 76

800 / 76

1000 / 76

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11

Screw / Torque                    / lbf.in

M4 / 10.6-13



Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand.
