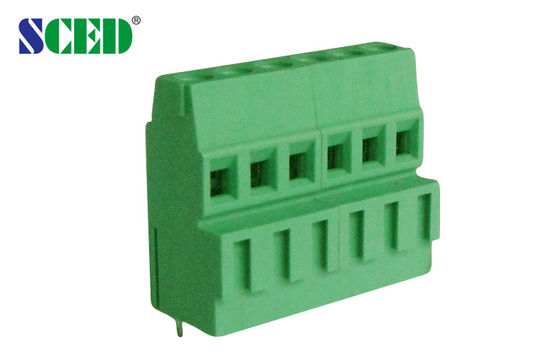

M3 Screw Green Terminal Block Connector 300V / 10A 6-7mm Stripping Length

M3 Screw Green Terminal Block Connector 300V / 10A 6-7mm Stripping Length

  • M3 Screw Green Terminal Block Connector 300V / 10A 6-7mm Stripping Length
  • M3 Screw Green Terminal Block Connector 300V / 10A 6-7mm Stripping Length
M3 Screw Green Terminal Block Connector 300V / 10A 6-7mm Stripping Length
Product Details:
Place of Origin: Guangdong,China
Brand Name: SCED
Certification: CE,UL,CUL,CQC and VDE etc.
Model Number: TJ508-16
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: USD 0.05-0.12 Per Pole
Packaging Details: Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Delivery Time: 5-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Pole/Poles per Month
Contact Now
Detailed Product Description
Wire Range: 12-26 AWG Screw: M3
Stripping Length: 6-7mm Pitch: 5.08mm
Current: 10A Voltage: 300V
Clamp Cage: Brass Inflammability Class: UL94-V0
Insulation Material: PA66 Poles: 2-24 Poles
High Light:

Terminal Block Connector M3 Screw

,

300V Terminal Block Connector

,

7mm Stripping Terminal Block Connectors

Green Terminal Block Connector 300V/10A M3 Screw 6-7mm Stripping Length 12-26AWG



Detailed product Description:



Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series

Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors are also available, please refer to below How to Order and select the color you want.



How to order:

M3 Screw Green Terminal Block Connector 300V / 10A 6-7mm Stripping Length 0



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 10   300 / 10
Wire Range AWG 12-26   12-26
IEC Technical Data
Overvoltage Category
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:





  1. Flexible to design the exact part per customers’ demand

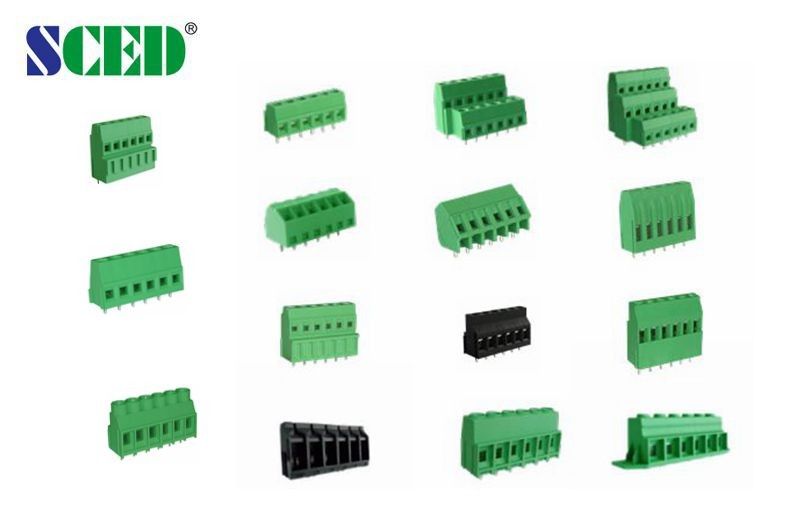

  2. More than 1000 models for selection
  3. High and stable quality
  4. Competitive price

Applications:

Generally speaking, our products are used in a lot of fileds and industries, for example: Security, Industrial Control, Power Supply, Medical Equipment, Military, Electonics, PCB and so on.



M3 Screw Green Terminal Block Connector 300V / 10A 6-7mm Stripping Length 1
