| Place of Origin: | Guangdong, China |
| Brand Name: | SCED |
| Certification: | CE,UL |
| Model Number: | TP508H-76V |
| Minimum Order Quantity: | 1000 Piece/Pieces |
|---|---|
| Price: | USD 0.018-0.045 Per Pole |
| Packaging Details: | Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm. |
| Delivery Time: | 5-20 Working Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000 Pole/Poles per Month |
| Color: | Green | Voltage: | 300V |
|---|---|---|---|
| Pitch: | 7.62mm | Current: | 18A |
| Poles: | 2-16 Poles | Terminal: | Brass |
| Contact Resistance: | Less Than 8mΩ | Rated Surge Voltage: | No Abnormal Within 1 Minute |
| Inflammability Class: | UL94, V-0 | Insulation Resistance: | Above DC500V, 500MΩ |
| High Light: | PCB 18A Pluggable Terminal Block,Right Angle Pluggable Terminal Block,7.62mm Plug In Terminal Blocks |
||

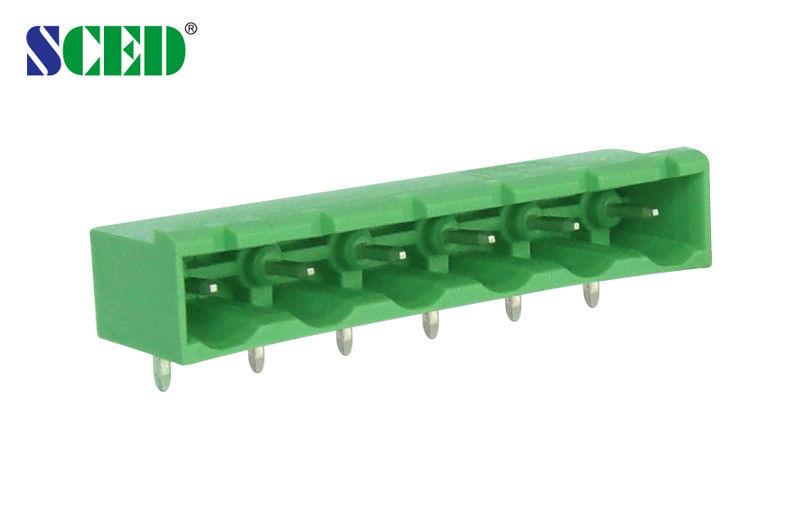

Male Pluggable Terminal Block Green Color Right Angle 7.62mm 300V 18A
Detailed product Description:
Header, Male Sockets, Pitch: 7.62mm, 300V 18A, 2-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
This male header match with female plugs’ series: TP508P-76, TP508P-77, TP508P-78, TP508P-79
Wire Inlet: ■Right angle wire inlet
Levels: ■Single Level
Standard color: Green.
Other colors also available, please refer to below How to Order and select the color you want.
Applications:
1. PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control 2. Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military and Elevator and so on.
Competitive Advantage:
Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/18 | 300/18 | |
| IEC Technical Data | |||
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 400 / 18 | 630 / 18 | 1000 / 18 |
| Rated Surge Voltage KV | 6 | 6 | 6 |
| Material | |||
| Insulation Material / Inflammability Class | PA66 / UL94, V-0 | ||
| Terminal / Plating | Brass / Tin Plated | ||
| Other Data | |||
| PCB Hole Diameter mm | φ1.4 | ||
| Pin Dimension mm | 1.0 x 1.0 | ||
