    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ508-07

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Green
    Number Of Contacts: 2P-24P Pitch: 5.08mm
    Rated Current: 10A Rated Voltage: 300V





    PCB Terminal Block PA66 PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm



    Quick Details:



    1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.



    2. It is consisted of plastic housing, clamp cage, terminal and screw.



    3. It can be stacked to be different poles via 2P and 3P,



    4. Wire inlet Direction: 45 90 180degree



    4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel



    Data





    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300/10



    300/10

    Wire Range                                AWG

    12-26



    12-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current               V/A

    250 / 10

    400 / 10

    630 / 10

    Rated Surge Voltage                    KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    1.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                  mm

    φ1.4

    Stripping Length                      mm

    6-7

    Screw / Torque                      / lbf.in

    M3 / 4.4-5.3







    Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

    How to order:

    PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm

    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand

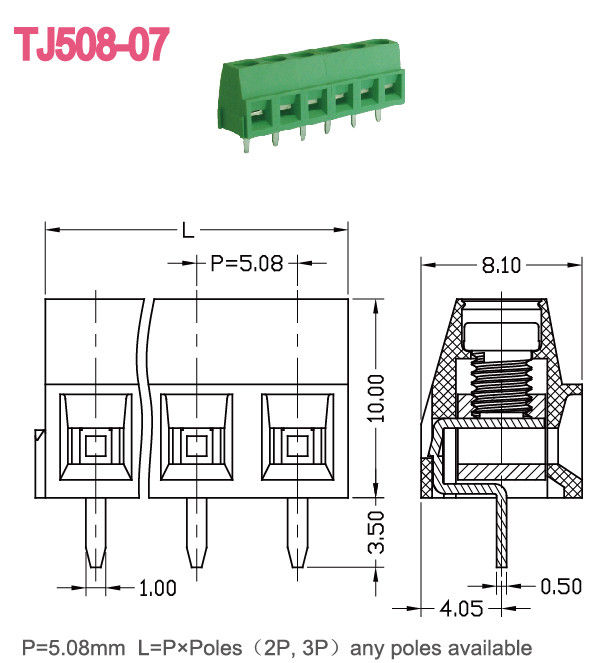

    Drawing photo:

    PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm

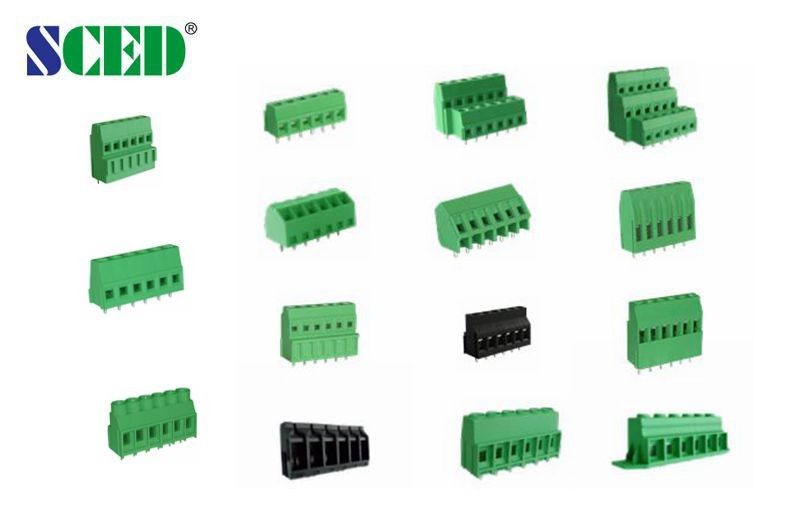

    Photo of more products



    PA66 PCB Terminal Block , PCB Connector 3.50/3.81/5.00/5.08/7.62/9.52/10.16/15.00mm
