5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal

China 5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal supplier
5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal supplier 5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal supplier 5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal supplier

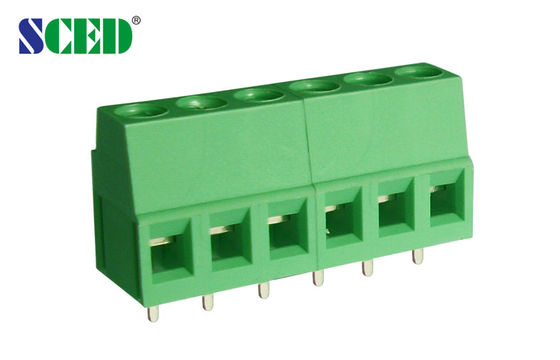

Large Image :  5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TJ500-04-T1

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Number Of Contacts: 2P-24P
Pitch: 5.0mm Rated Current: 10A
Rated Voltage: 300V Type: PCB Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks

5.0mm PCB Terminal Block Connectors-Terminals 2P-24P Screw Clamp Terminal





Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.





Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks , PCB screw terminal blocks, Euro type Raising series



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/10



300/10

Wire Range                                AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current               V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                    KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                   mm

φ1.4

Stripping Length                       mm

6-7

Screw / Torque                       / lbf.in

M3 / 4.4-5.3



Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers' demand

Drawing photo:



5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal



5.0mm PCB Terminal Block Connectors - Terminals 2P-24P Screw Clamp Terminal
