Black 5.0mm Pitch PCB Terminal Block With 300V 10A TJ500 - 01

Black 5.0mm Pitch PCB Terminal Block With 300V 10A TJ500 - 01

    • Black 5.0mm Pitch PCB Terminal Block With 300V 10A TJ500 - 01
    • Black 5.0mm Pitch PCB Terminal Block With 300V 10A TJ500 - 01
    • Black 5.0mm Pitch PCB Terminal Block With 300V 10A TJ500 - 01
  • Black 5.0mm Pitch PCB Terminal Block With 300V 10A TJ500 - 01

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: SCED
    Certification: UL, CE
    Model Number: TJ500-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard export packing carton
    Payment Terms: T/T
    Supply Ability: 1KK poles each monthly
    Contact Now
    Detailed Product Description
    Type: PCB Type Pitch: 5.00 Mm
    Nom.Voltage: 300V Nom.Current: 10A
    Color: Black, Other Color Available Insulation Material: PA66

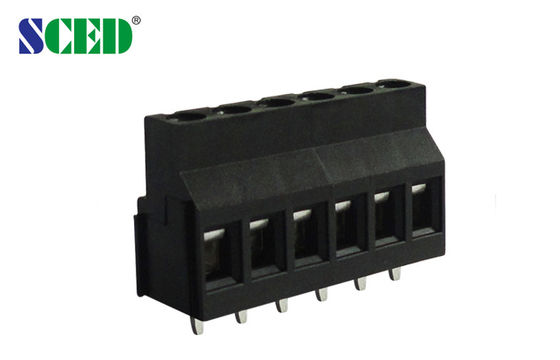

    Black 5.0mm Pitch PCB Terminal Block With 300V 10A TJ500 - 01


    Parameter and Drawing Specifications:



    UL Technical Data

    B

    C

    D

    Rated Voltage / Current              V/A

    300 / 10



    300 / 10

    Wire Range                       AWG

    12-26



    12-26

    IEC Technical Data



    Overvoltage Category

    Contamination Class

    3

    2

    2

    Rated Voltage / Current              V/A

    250 / 10

    400 / 10

    630 / 10

    Rated Surge Voltage                 KV

    4

    4

    4

    Rated Connecting Capacity           mm2

    2.5

    Material



    Insulation Material / Inflammability Class

    PA66 / UL94, V-0

    Clamp Cage / Plating

    Brass / Nickel Plated

    Terminal / Plating

    Brass / Tin Plated

    Screw / Plating

    Steel / Zinc Plated

    Other Data



    PCB Hole Diameter                 mm

    φ1.5

    Stripping Length                    mm

    7-8

    Screw / Torque                    / lbf.in

    M3 / 4.4-5.3



    Competitive Advantage:

    1. Stable good quality
    2. Competitive price
    3. Quickly response
    4. Full range products for selection
    5. Flexible to design the exact part per customers’ demand


    Applications:


    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

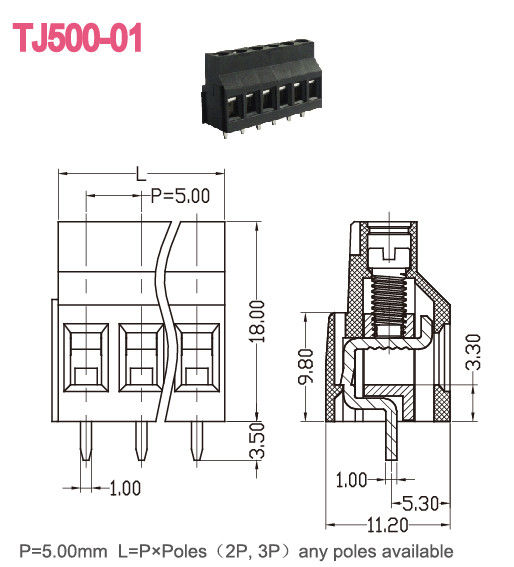

    Drawing Specifications


    TJ500-01
